- Built for Strength, Designed for Efficiency

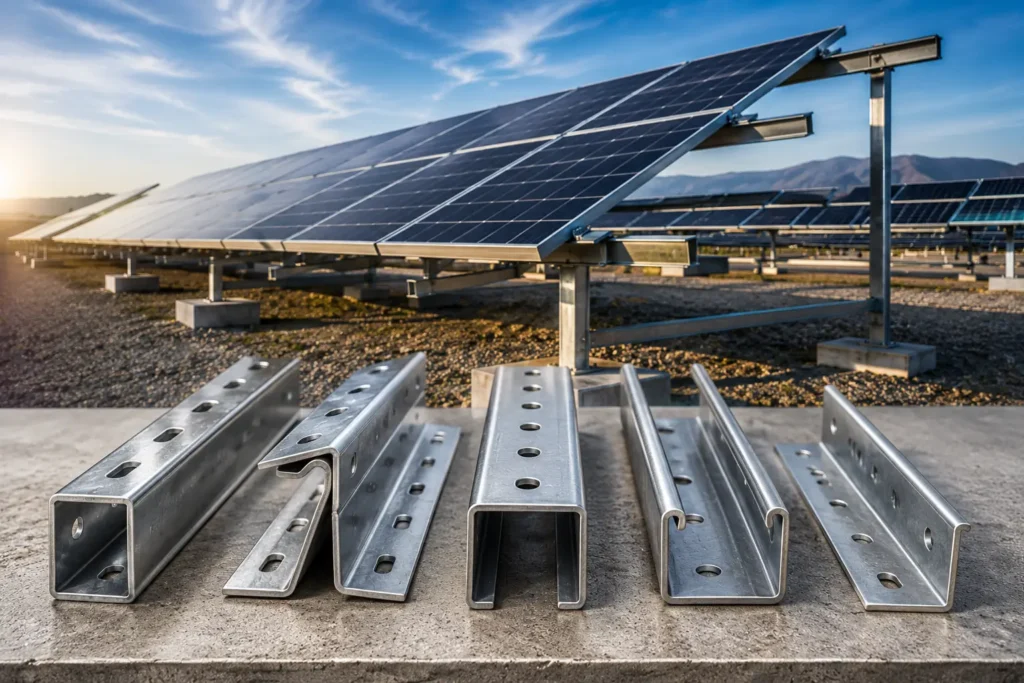

Module Mounting Structure
We offer comprehensive solutions for module mounting structures in India. With high precision orientation, our state-of-the-art manufacturing facilities are aimed at meeting the needs of both owners and integrators. The mounting structures are used across industries like Solar, Construction and many more.
Our product offering includes C-Channels, Z-Purlin, Top Hat, Lip Channels, and Equal Angle (90) and is available in Bare, Pre-galvanized, and Hotdip galvanized material category.

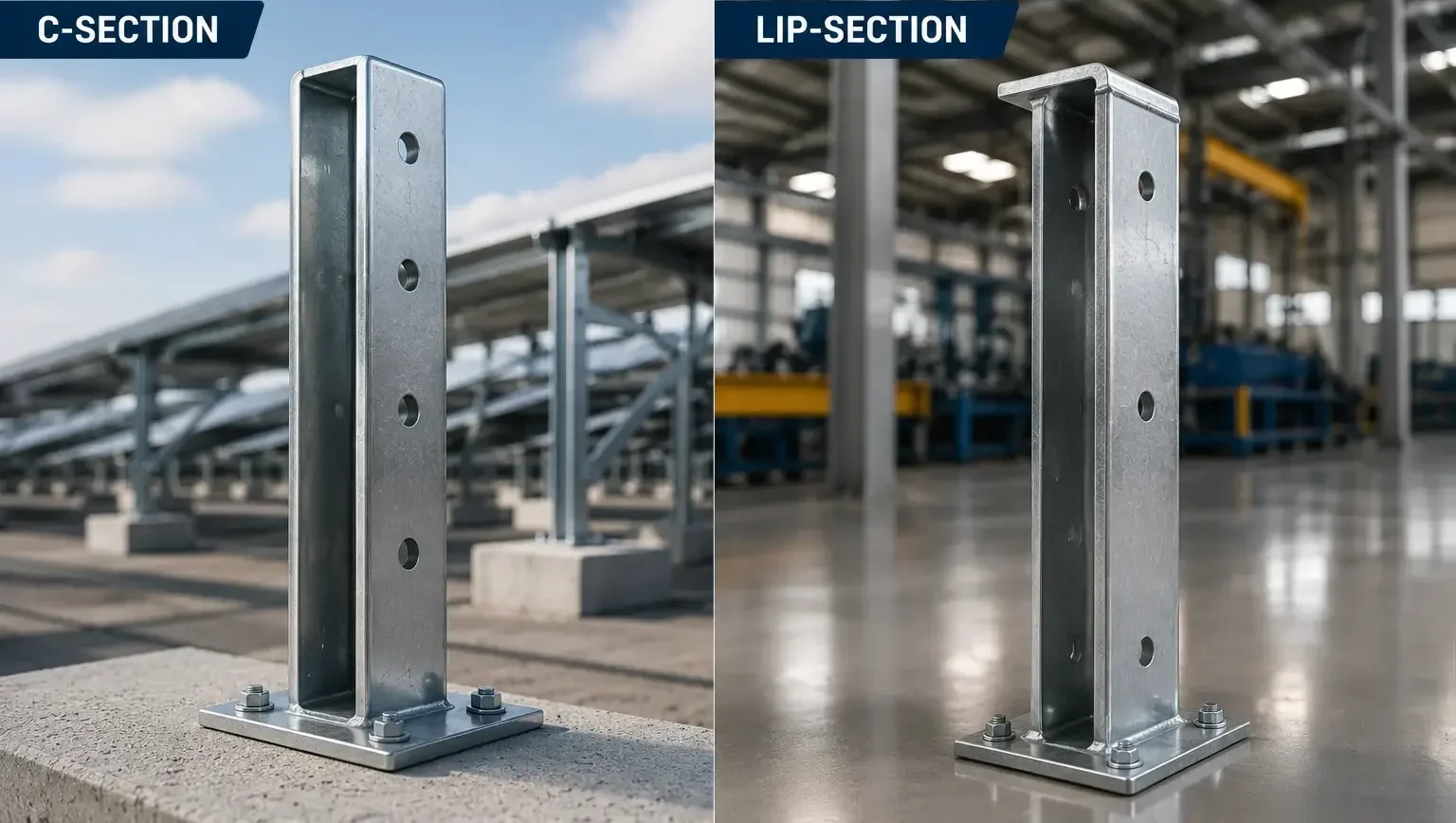

Columns Types
- C-Section
- Lip-Section

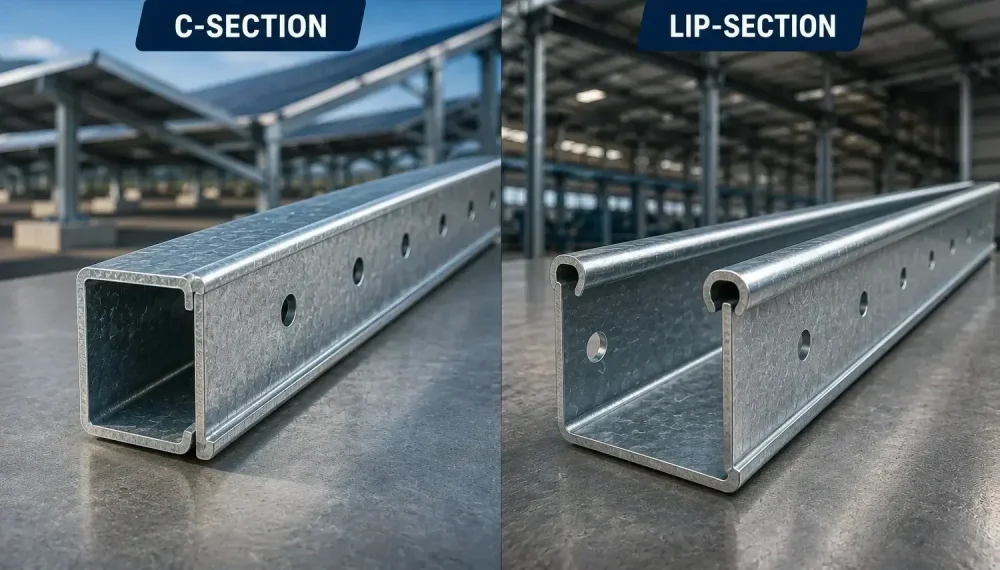

Rafter Types
- C-Section
- Lip-Section

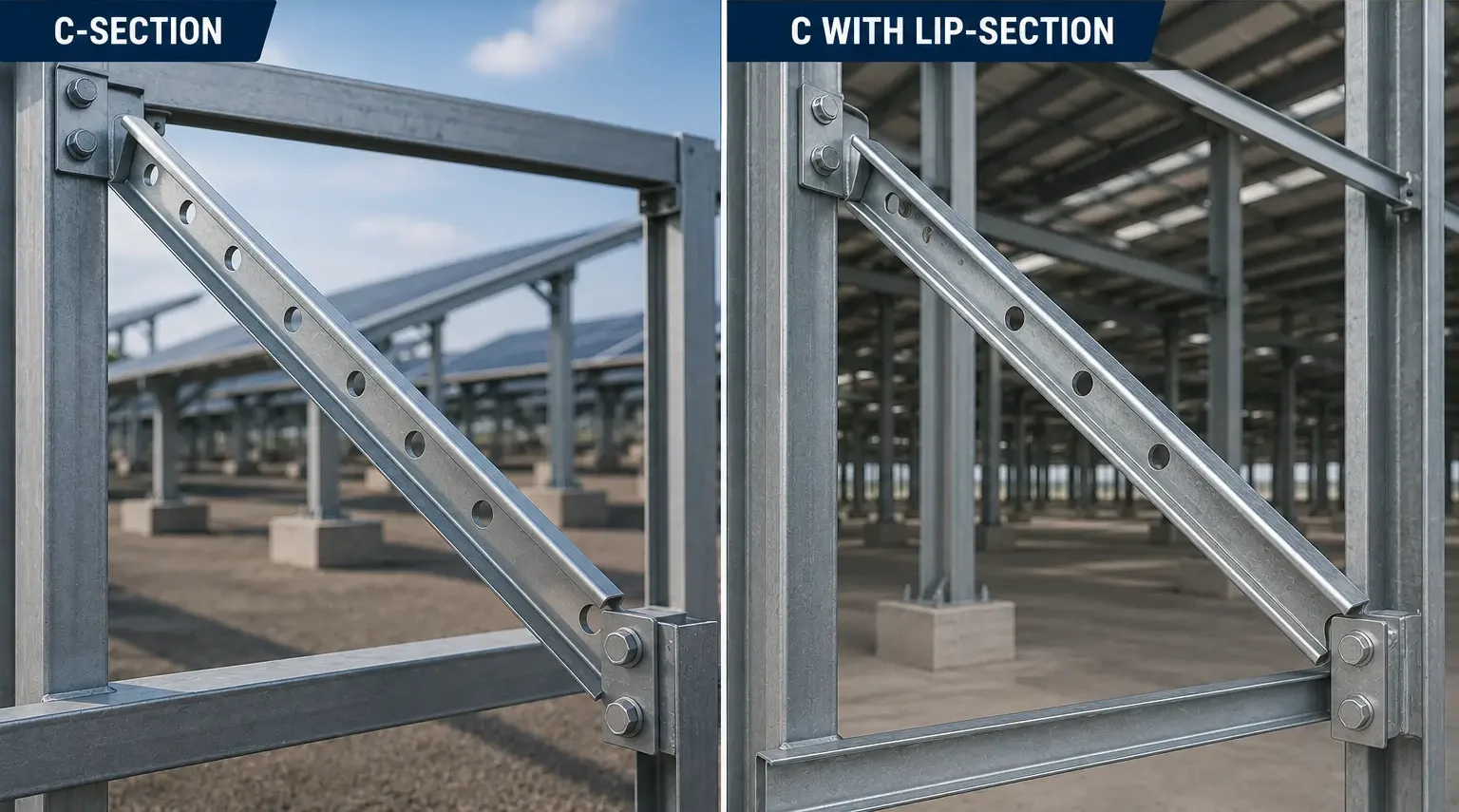

Bracings Types
- C-Section
- C with Lip-Section

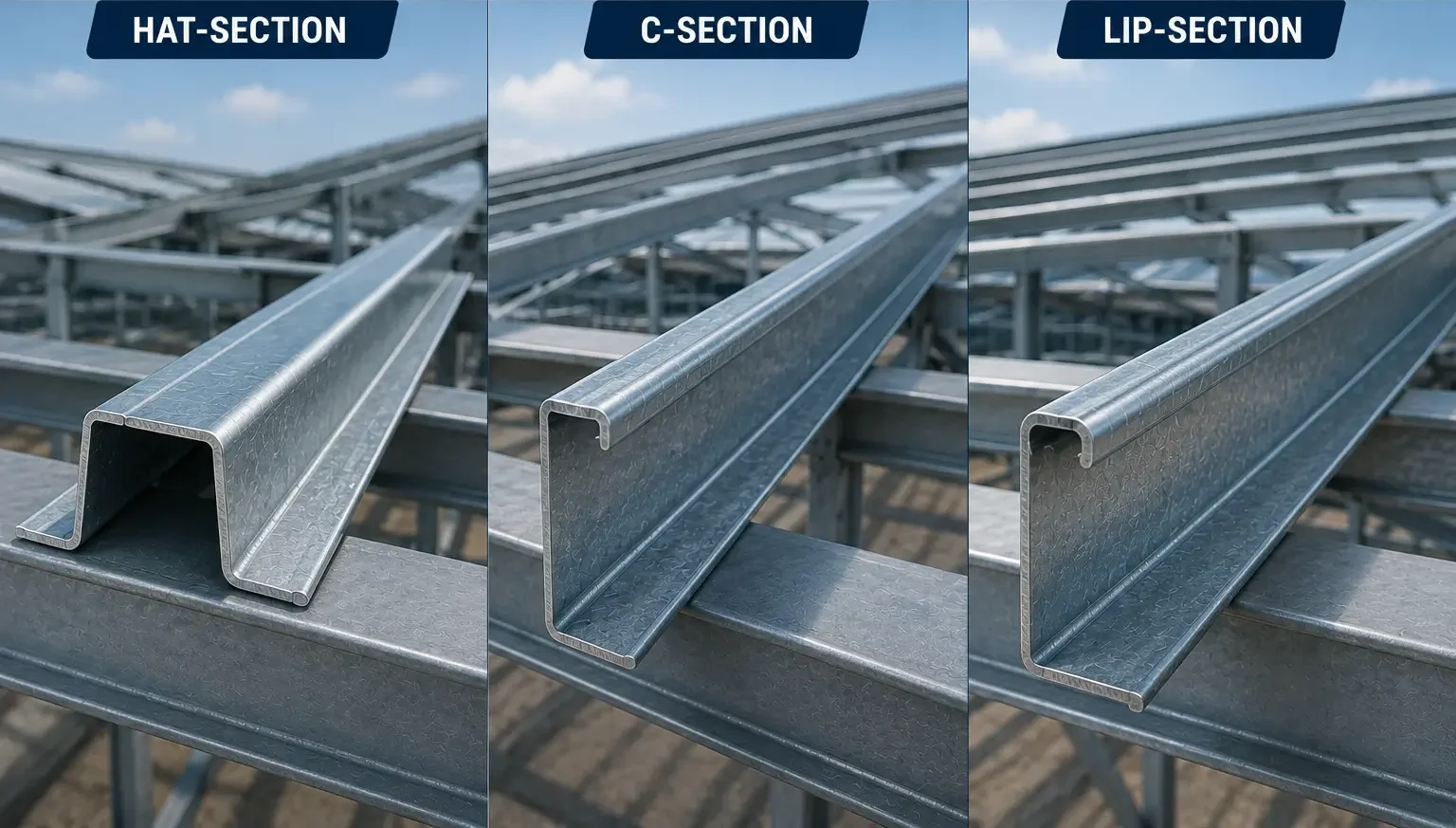

Purlins Types
- Hat-Section
- C-Section
- Lip-Section
Performance Benchmarks
Long
service life
High
power yields
Low installation and
maintenance costs
High material
efficiency
Secure design
calculation
Efficient manufacturing
process
Optimized
logistics
Versatile and
compatible designs
| Property | Min | Max |
|---|---|---|
| Flange (f) | 40 | 80 |
| Web (w) | 70 | 300 |
| Lip (l) | 10 | 20 |
| Thickness (t) | 1 | 3 |
| Property | Range |
|---|---|
| Thickness (t) | 1.2 to 3 mm |
| Web (w) | 40 – 200 |
| Flange (f) | 40 – 90 |
| Lip (l) | 10 – 25 |
| Yield Strength | 345 MPa |
| Property | Value |
|---|---|
| Thickness | 0.8 to 1.2 mm |
| Height | 70 – 100 |
| Top Base | 40 |
| Bottom Base | 25 |
| Lip | 6 – 10 |
| Degree | 75° |
| Yield Strength | 550 MPa |
| Property | Range |
|---|---|
| Thickness (t) | 1 to 3 mm |
| Web (w) | 70 – 300 |
| Flange (f) | 40 – 80 |
| Lip (l) | 10 ~ 20 |
| Yield Strength | 345 MPa |
Material Processing & Manufacturing
Thickness Range
0.8 mm to 3 mm
Max Length
Up to 12000mm
Material Grades
CR, HR, Galvanized Steel
Yield Strength
245MPa to 345MPa
Type
Bare, Pre-galvanized, Hotdip galvanized
Galvanization Thickness
10 microns – 120 microns
